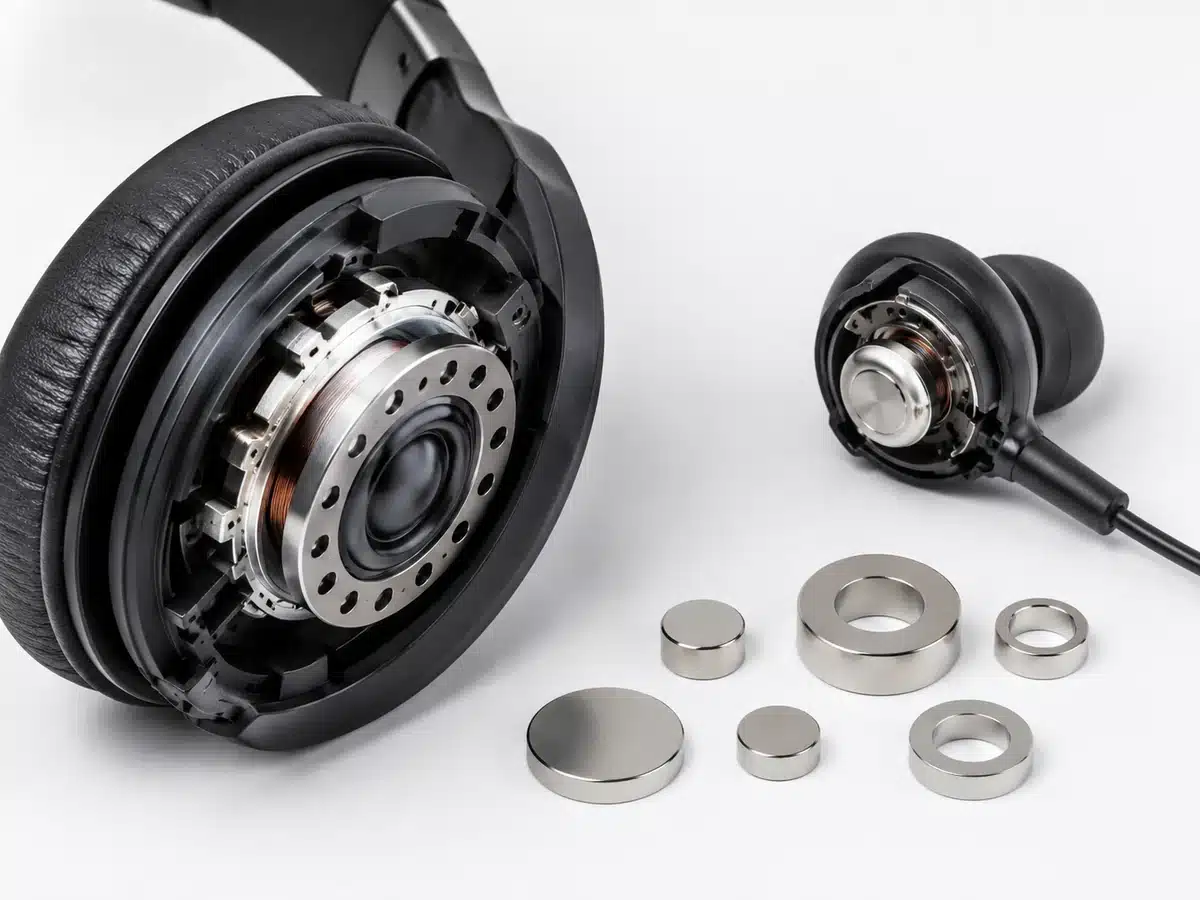

Custom Neodymium Magnets for Headphone and Earbud Applications
Headphone and earbud projects often require small neodymium magnets that match a specific driver structure. The right magnet is not selected only by outside size or magnetic grade. Shape, magnetization direction, coating, tolerance, assembly clearance, and sampling validation should be reviewed together.
OSENC supports custom neodymium magnet projects for headphone, earbud, and headset audio driver applications. Send your drawing, sample photo, current specification, magnetization direction, coating request, and assembly details for review before sampling.
Start With the Driver Structure, Not the Magnet Grade
A common mistake is to start with the strongest available grade. For headphone magnet projects, that is not always the right approach.
The better starting point is the actual driver structure. Confirm the available space, usable shape, magnetization direction, coating and tolerance limits, and how the sample will be validated in the final device.
A higher grade may provide stronger magnetic potential, but it is not automatically better. The final choice depends on size, magnetic circuit design, working gap, temperature condition, coating, cost target, and production method.

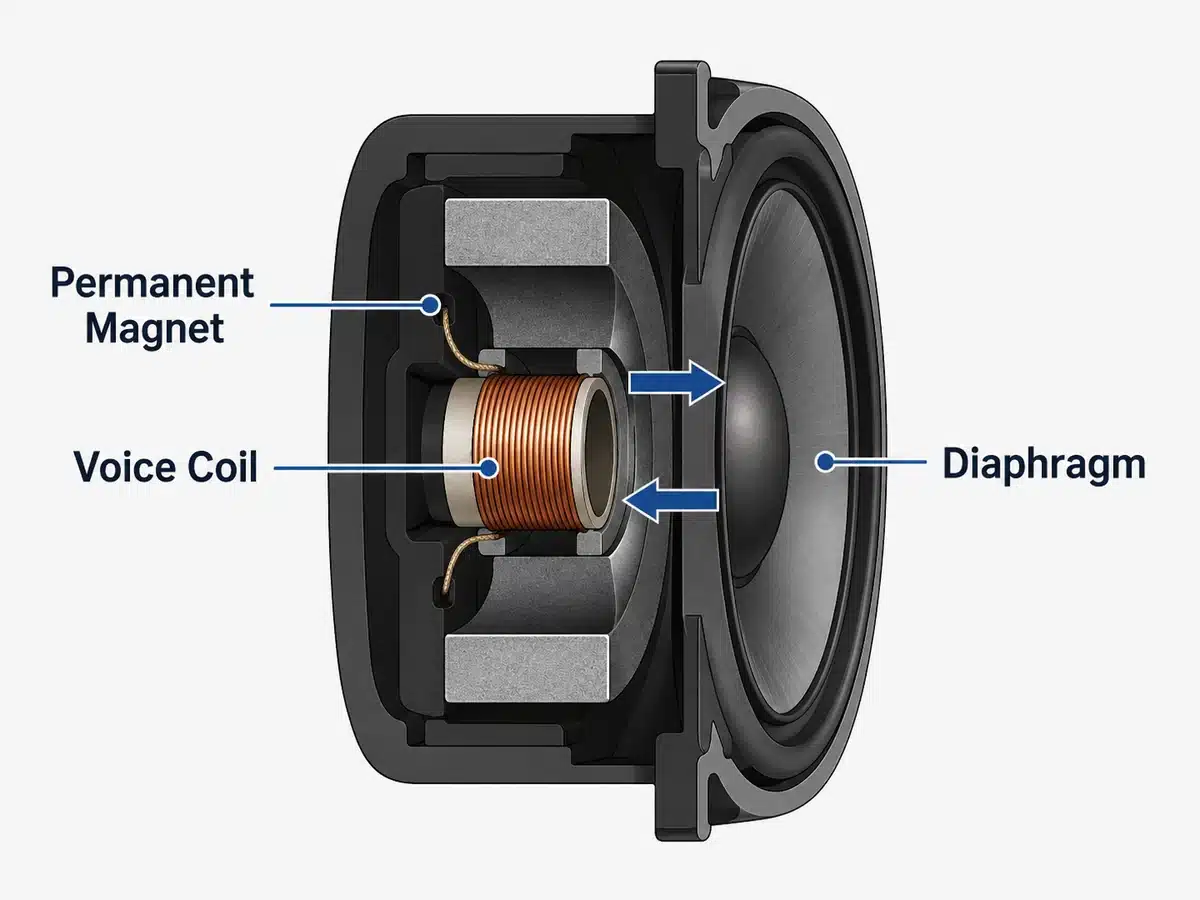

How Magnets Work in Many Dynamic Headphone Drivers
In many dynamic headphone drivers, a voice coil interacts with a permanent magnetic field and moves the diaphragm to create sound waves. The magnet is one part of this complete driver system.
Because headphone driver structures vary, the magnet design should be reviewed according to the actual layout instead of copied from another product. A magnet that works in one headphone or earbud design may not work the same way in another design with a different housing, gap, diaphragm, coil, or assembly method.
For this reason, OSENC treats headphone magnets as application-specific custom parts rather than simple catalog items.
Where Custom Headphone Magnets May Be Needed
Custom neodymium magnets may be considered when a standard magnet cannot meet the mechanical or magnetic requirements of a headphone project.
- Headphone dynamic driver projects.
- Earbud and in-ear audio driver projects.
- Headset audio driver projects.
- Compact headphone or earbud magnetic structures.
- OEM sample matching for redesign, validation, or production review.
- Small magnet projects where shape, coating, tolerance, or magnetization direction must be controlled.
The exact magnet choice depends on the product design. OSENC can review the available information and help identify which details still need confirmation before sampling.

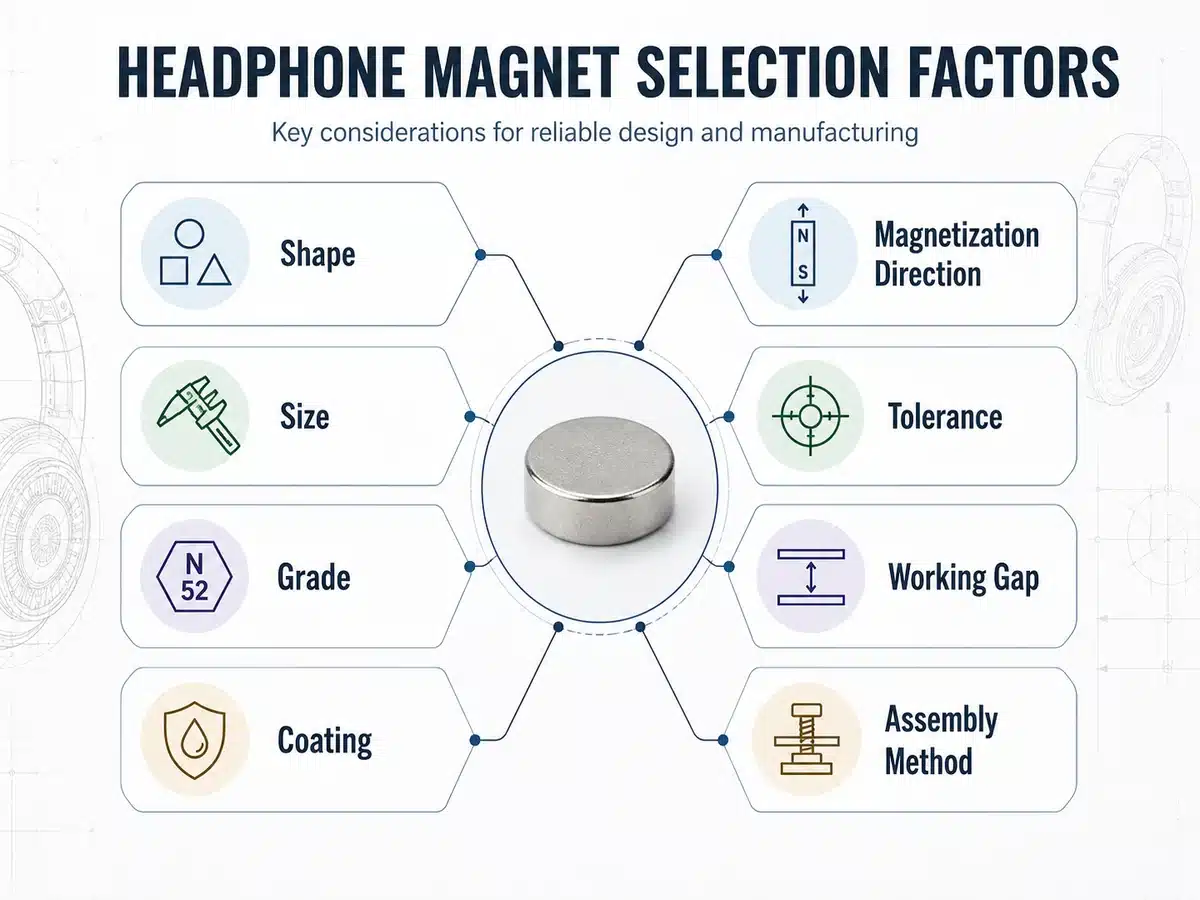

Key Design Factors to Confirm Before Sampling
Before requesting custom headphone magnets, engineers and buyers should confirm the main design factors. These details help OSENC review manufacturing feasibility and reduce avoidable sampling problems.
| Design Factor | Why It Matters in Headphone Projects | What to Send for Review |
|---|---|---|
| Driver structure | The magnet must match the actual audio driver layout. | Driver drawing, assembly drawing, sample photo, or structure description. |
| Magnet shape | The shape must fit the available space and magnetic circuit. | Disc, ring, block, custom shape, or existing sample details. |
| Magnet size | Small dimensional changes may affect fit, gap, and assembly stability. | Diameter, thickness, length, width, height, or full drawing. |
| Magnetization direction | The magnetic direction must match the magnetic circuit and assembly orientation. | Magnetization mark, drawing note, or reference sample. |
| Grade | Grade should match magnetic requirement, size limit, temperature condition, and cost target. | Current grade, target grade, or performance requirement if known. |
| Coating | Coating affects corrosion protection, surface condition, bonding method, and assembly clearance. | Required coating, environment, and assembly condition. |
| Tolerance | Tight assemblies need controlled dimensions and stable production consistency. | Critical dimensions and tolerance notes. |
| Working gap / air gap | Magnetic behavior depends on distance and surrounding structure. | Gap information, driver layout, or magnetic circuit drawing. |
| Assembly method | Bonding, housing insertion, or automated feeding can affect magnet edge, coating, and handling requirements. | Assembly process, housing material, and stress condition. |
| Temperature condition | Working and storage temperature should be considered before selecting the grade. | Expected temperature range or test condition if available. |
| Inspection requirement | Projects may require dimensional, visual, magnetic, or coating checks. | Inspection items, quality requirements, or existing standard if available. |
You do not need every detail before contacting OSENC. If your team only has a sample, photo, or early drawing, OSENC can start from the available information and help identify the missing specification points.

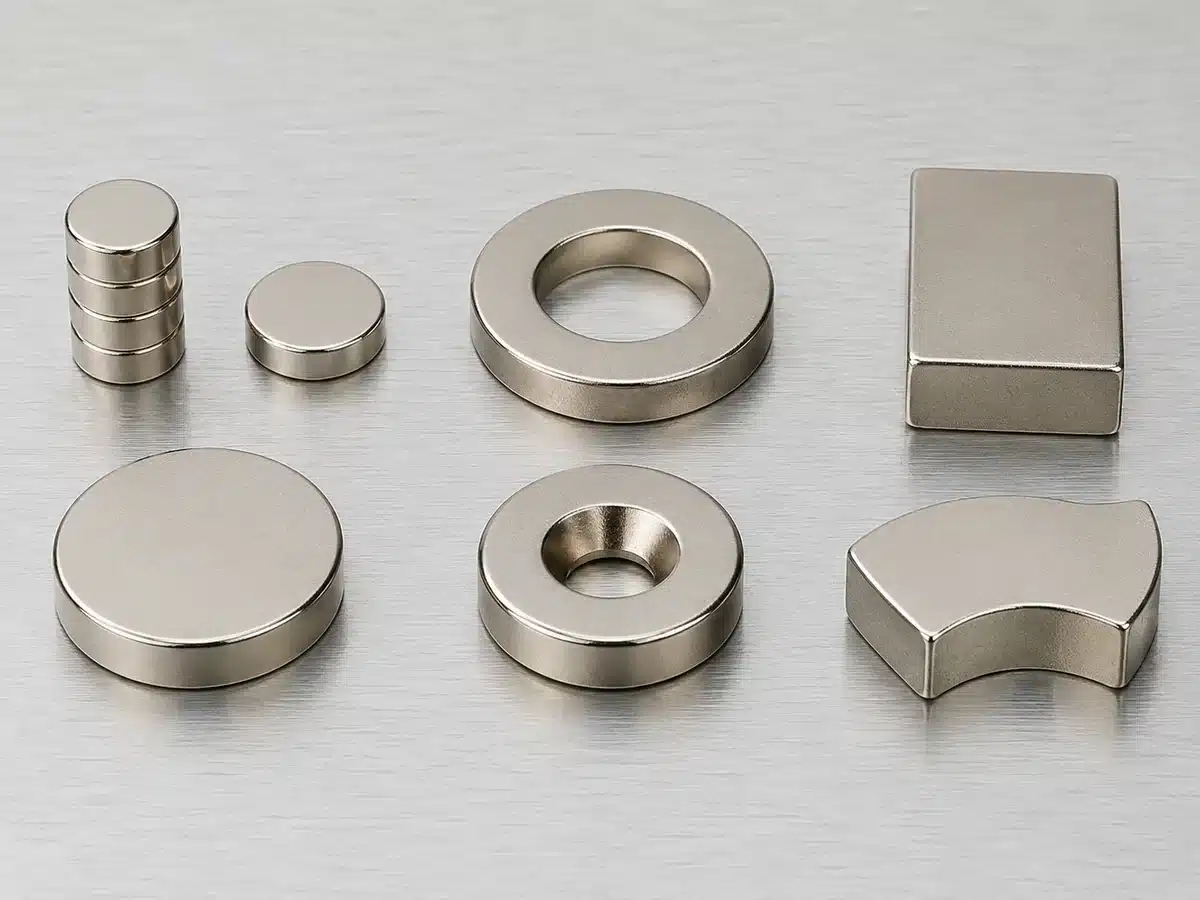

Which Magnet Options Should Be Reviewed for a Headphone Project?
There is no universal “best headphone magnet.” The right option depends on the driver structure and production requirements.
This is not a fixed catalog. It is a review guide. For a real headphone or earbud project, the drawing, sample, and assembly details decide which option is practical.
| Magnet Option | When It May Be Relevant | What Must Be Confirmed |
|---|---|---|
| Disc or cylinder magnets | When the design needs a compact round magnet. | Diameter, thickness, magnetization direction, coating, and tolerance. |
| Ring magnets | When the structure requires a center opening or specific magnetic layout. | Outer diameter, inner diameter, thickness, magnetization, and edge condition. |
| Block or square magnets | When the internal layout needs a rectangular magnetic part. | Length, width, height, orientation, and assembly clearance. |
| Custom shaped magnets | When standard shapes cannot fit the driver or housing design. | Drawing, machining feasibility, tolerance, coating, and magnetic requirement. |
| Micro or small neodymium magnets | When the product has limited internal space. | Handling method, packaging, inspection, and critical dimensions. |
| Custom magnetization | When the magnetic direction must match a specific assembly orientation. | Magnetization drawing, sample reference, or polarity mark. |
Common Selection Mistakes in Headphone Magnet Projects
Many sampling problems happen because the magnet is selected too quickly. A magnet can look correct by size but still fail to match the final application.
Choosing Only by Grade
A higher grade can be useful in some designs, but grade alone does not decide whether the magnet is suitable. The magnet must work with the driver structure, size limit, working gap, temperature condition, coating, and assembly method.
Ignoring Magnetization Direction
If the direction does not match the design, the magnet may not work as expected even when the size and material are correct. The magnetization direction should be shown clearly on the drawing or confirmed with a reference sample.
Treating Surface Field as the Final Answer
Surface field can be useful for comparison, but it does not replace validation in the final magnetic circuit, working gap, and assembly structure.
Overlooking Coating and Clearance
Coating should be selected according to corrosion risk, appearance needs, bonding method, and assembly clearance. In a small assembly, even small dimensional changes may matter.
Ignoring Edge, Handling, and Feeding Risk
Neodymium magnets are hard and brittle. Small magnets with thin edges, tight insertion conditions, adhesive bonding, or automated feeding requirements should be reviewed carefully before sampling.
Copying Another Magnet Without Checking the Structure
Two magnets may look similar but behave differently in different driver designs. Housing material, air gap, coil position, magnetization direction, and assembly process can all affect the final result.
How OSENC Supports Custom Headphone Magnet Projects
OSENC focuses on neodymium magnets and magnetic components for OEM projects. For headphone and earbud applications, OSENC can help review the magnet design from the manufacturing and application side.
Drawing and Sample Review
Review magnet drawings, sample details, current specifications, and missing information before sampling.
Small Magnet Customization
Discuss small neodymium magnets, micro magnets, disc magnets, ring magnets, or custom shapes based on the structure.
Manufacturing Feasibility
Review grade, coating, magnetization direction, critical dimensions, packaging, and handling considerations for small magnets.
OSENC does not replace the customer’s complete acoustic design or final product validation. The finished magnet should still be tested inside the customer’s actual headphone or earbud structure.

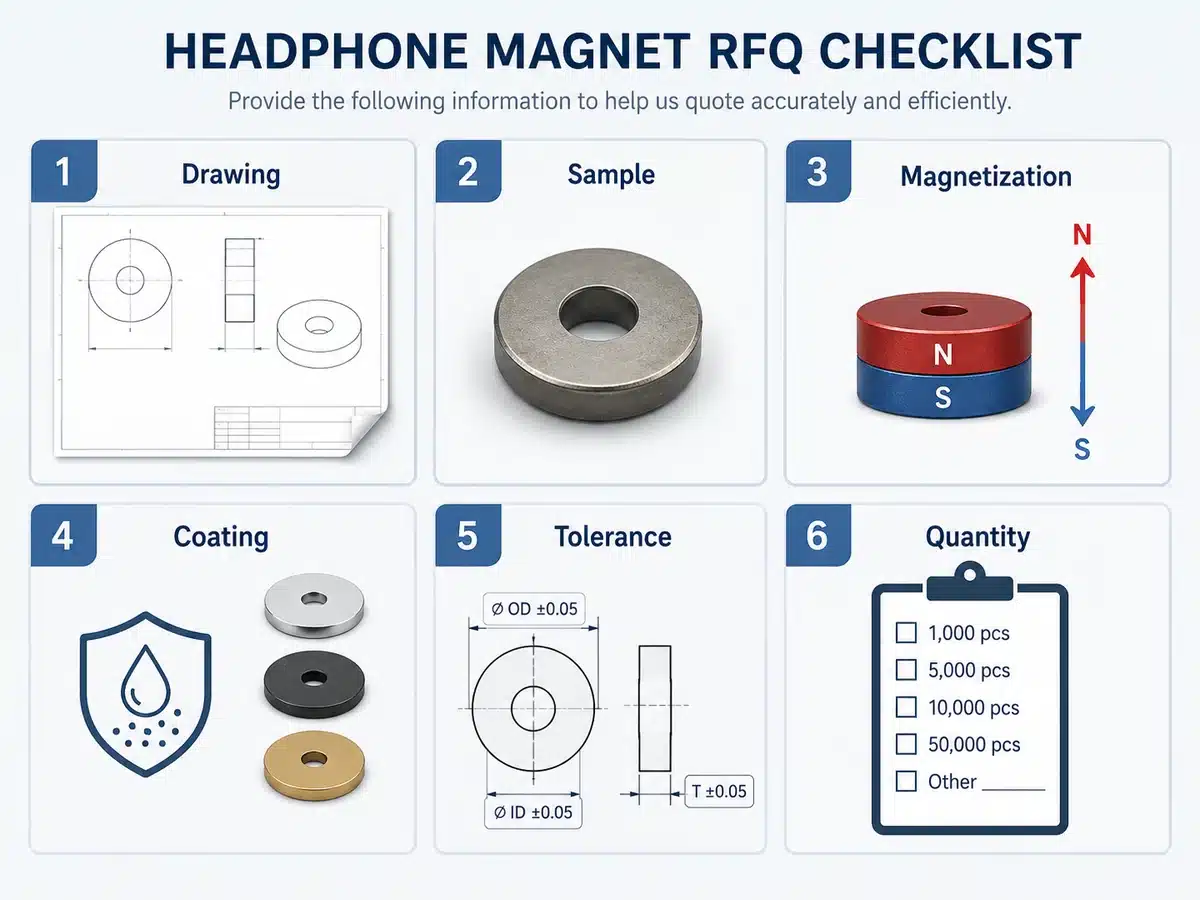

What Should You Send for a Headphone Magnet RFQ?
A clear RFQ helps OSENC understand your project faster. You can send complete drawings, or you can start with sample photos and basic application information.
- Product type: headphone, earbud, or headset audio driver.
- Magnet drawing, 3D model, sample photo, or current specification.
- Magnet shape and dimensions.
- Critical tolerance requirements.
- Required grade, if already specified.
- Coating requirement, if known.
- Magnetization direction or polarity mark.
- Quantity target and sample requirement.
- Assembly method, such as adhesive bonding, housing insertion, or automated feeding.
- Working or storage temperature condition.
- Inspection requirement.
- Existing issue, such as weak magnetic performance, coating damage, breakage, or unstable assembly.
If you do not know the grade, coating, or magnetization direction yet, send the available drawing or sample details first. OSENC can review the information and help clarify what needs to be confirmed before sampling.
Related OSENC Magnet Capabilities
Headphone magnet projects may connect with several OSENC product and service areas. The correct choice should be based on the actual drawing and application conditions.
Questions Buyers Often Ask
Are neodymium magnets used in headphones?
Yes. Neodymium magnets are often used in headphone and earbud applications where compact size and strong permanent magnetic performance are important. The exact magnet design depends on the driver structure and assembly method.
What shape is best for headphone magnets?
There is no single best shape for all headphone magnets. Disc, ring, block, and custom shapes may all be possible depending on the driver design, available space, magnetization direction, and assembly requirements.
Is N52 always the best grade for headphone magnets?
No. A higher grade is not automatically the better choice. Grade should be reviewed together with size, magnetic requirement, temperature condition, cost target, and production process.
Does coating matter for headphone magnets?
Yes. Coating can affect corrosion protection, surface condition, bonding method, and assembly clearance. For small magnets, coating should be reviewed together with tolerance and final assembly requirements.
Can OSENC make custom small magnets for headphone projects?
OSENC supports custom neodymium magnet projects, including small and micro magnet requirements. For headphone projects, send the drawing, sample photo, size requirement, coating request, and magnetization direction for review.
What if I only have a sample and no final drawing?
You can send sample photos, approximate dimensions, product type, assembly method, and the problem you want to solve. OSENC can review the available information and help identify which details are still needed before sampling.
Can OSENC guarantee better headphone sound quality?
OSENC can help review and supply custom magnets based on your drawing and application requirements. Final acoustic performance depends on the complete headphone driver design, not only the magnet. The finished product should be validated in the customer’s own design and testing process.
Send Your Headphone Magnet Drawing or Sample for Review
If you are developing custom neodymium magnets for headphones, earbuds, or headset audio drivers, send OSENC your drawing, sample photo, current specification, magnetization direction, coating request, assembly condition, and quantity target.
OSENC can review the magnet specification and discuss a practical custom magnet solution before sampling.
