Custom TiN Coated NdFeB Magnets

Titanium Nitride (TiN) Coated Neodymium Magnets

OSENC supplies custom titanium nitride coated neodymium magnets engineered as finished magnetic components, not simply gold-colored parts. Our current TiN project framework uses low-temperature PVD, with DC/RF magnetron sputtering and Ti/TiN architectures preferred when the application needs a hard, thin functional surface while controlling magnetic and dimensional risk.

1–5 μm Design Window2–4 μm is the normal starting range; 3 μm nominal is a practical first specification for review.
Finished-Part Tolerance±0.05 mm standard and ±0.02 mm precision targets, subject to geometry and inspection review.
Low-Temperature Process ControlCoating sequence, substrate temperature and post-coating magnetic checks are reviewed together.

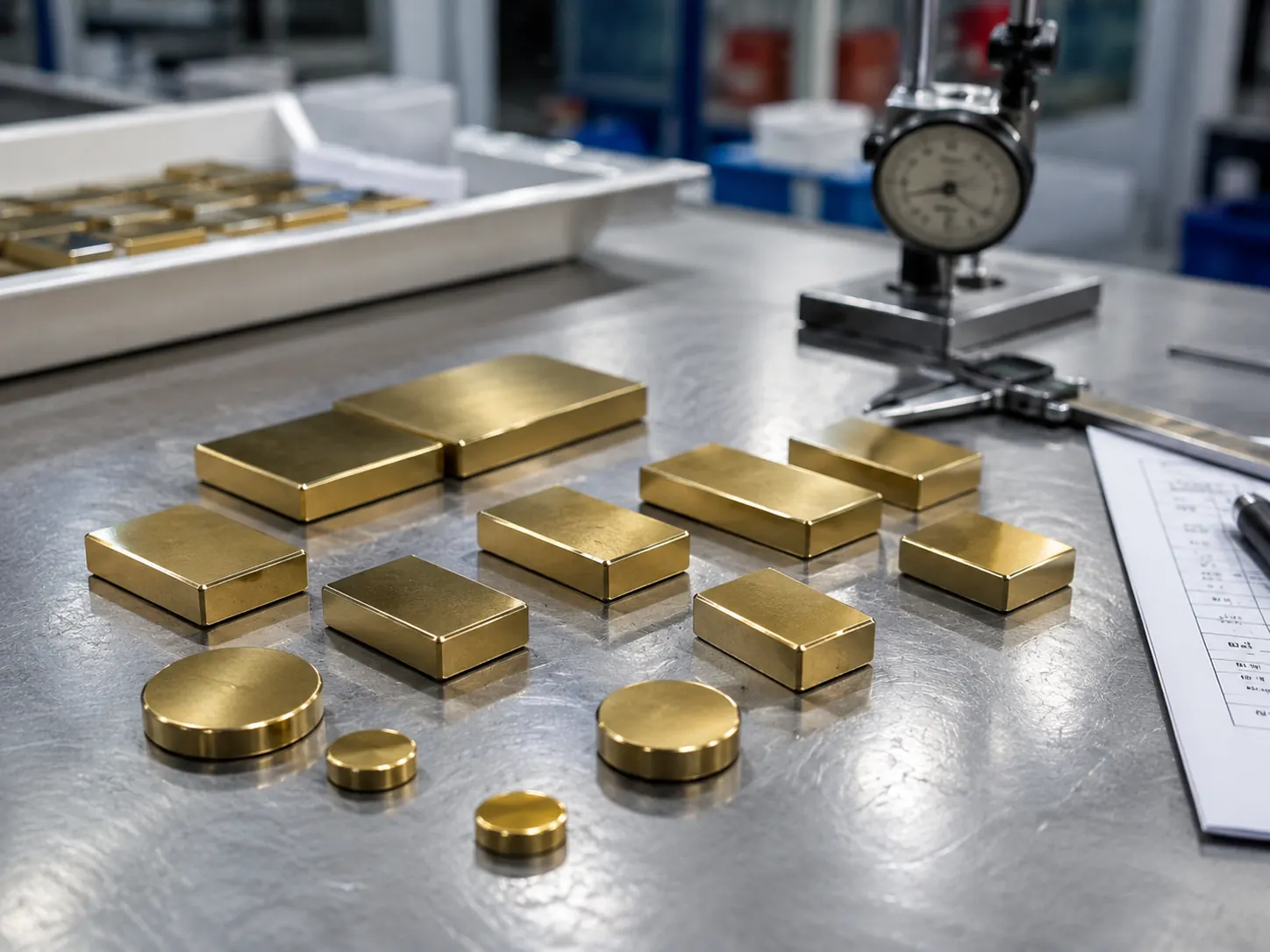

Titanium nitride coated neodymium magnets with gold TiN surface
Representative TiN-coated NdFeB visual. Final coating stack, color, thickness and acceptance follow the approved drawing and order specification.

Titanium Nitride Coated Neodymium Magnets: Quick Answer

TiN is a thin PVD ceramic coating used when surface wear, tight dimensional build, or another controlled surface function justifies more process control than a conventional magnet coating. For OSENC projects, the coating and NdFeB core are specified as one finished part: grade, geometry, magnetization, TiN stack, coating thickness, final dimensions, temperature exposure and inspection method must agree before production.

TiN is not automatically the best coating for every magnet. Nickel remains a practical industrial default, epoxy is useful where a polymer barrier is preferred, and Parylene can be valuable for thin conformal coverage. OSENC uses TiN when the application gives a clear engineering reason to use it.

OSENC TiN Coated Neodymium Magnet Capability

ParameterCurrent Project FrameworkBuying Boundary
TiN processLow-temperature PVD; DC/RF magnetron sputtering preferred. Cathodic Arc PVD can be evaluated.Cathodic arc and other higher-energy routes require substrate-temperature and magnetic-loss validation.
Coating architectureNdFeB → Ti adhesion layer → TiN; Ti/TiN multilayer preferred for higher corrosion-control requirements.Ni-based barrier + Ti/TiN is a development option, not a default stack; adhesion and corrosion must be re-qualified.
TiN thickness1–5 μm design capability; 2–4 μm typical; 3 μm nominal starting point.Thickness is locked only after wear, fit, geometry and process review.
Thickness control±0.5 μm or ±15% can be used as a drawing target.Qualification target Not a universal default tolerance for every geometry.
NdFeB gradesN35–N52 standard range; M/H/SH/UH/EH/AH temperature series available by project. N55/N55M by drawing review.Final grade depends on operating point, geometry, temperature and coating sequence.
Finished tolerance±0.05 mm standard; ±0.02 mm precision target.Tighter micro-part tolerances require dimensional-chain and inspection review; do not assume one tolerance applies to every feature.
ShapesDisc, block, ring, arc, sphere, trapezoid, countersunk, stepped, slotted and custom geometry.Deep holes, recesses, masks and shadowed areas require separate PVD coverage review.
MagnetizationAxial and diametrical are common; block-axis, angle and multipole patterns can be customized.True radial rings and special pole patterns require grade, geometry and tooling feasibility review.
For precision projects: specify dimensions in the finished coated state. The customer assembles the coated magnet, not the bare NdFeB blank, so coating build belongs in the tolerance chain.
Close view of TiN coated NdFeB magnet surface and finished geometry

Low-Temperature PVD, Ti/TiN Structure and Coating Thickness

Published NdFeB research supports RF magnetron sputtering and Ti/TiN multilayers as technically credible routes for TiN protection. A 2014 study deposited Ti/TiN multilayers directly on sintered NdFeB by radio-frequency magnetron sputtering and reported improved corrosion behavior versus bare NdFeB. A 2021 NdFeB study also showed that substrate temperature materially changes both corrosion protection and magnetic loss, which is why the deposition route cannot be separated from the magnetic specification.

Why Use a Ti Adhesion Layer?

The Ti interlayer provides a controlled transition between reactive NdFeB and the hard TiN surface. For demanding corrosion projects, a Ti/TiN multilayer can be evaluated instead of treating TiN as a single decorative film.

Why 2–4 μm Is a Practical Start

Published PVD TiN studies on different substrates commonly use micrometre-scale films, while a 2023 neodymium-magnet wear study used a 5 μm TiN film. OSENC therefore starts thickness selection from the actual wear, fit and coverage requirement rather than assuming “thicker is better.”

Why Thickness Needs a Tolerance

When TiN build affects a bore, slot, air gap or mating interface, nominal thickness alone is incomplete. The drawing should identify measurement locations and the accepted min/average/max or tolerance rule.

Do not copy a literature thickness directly into a PO. Published tests use different substrates, deposition systems, geometries and loads. The 1–5 μm OSENC design window is a project-planning range; the released value belongs on the approved drawing.

Applications for TiN Coated NdFeB Magnets

Wear-Sensitive Mechanisms

Sliding, repeated insertion, fixture contact and handling can justify a hard surface system when coating damage is a real failure mode.

Sensors & Precision Instruments

TiN is useful to evaluate where small coating build, repeatable fit and a controlled magnetic gap matter at the same time.

Compact Mechanical Assemblies

Rotors, couplings, compact actuators and precision mechanisms can benefit when final coated dimensions are more important than a generic plating specification.

Vacuum Development Projects

TiN-coated NdFeB has published use in vacuum-oriented magnetic systems, but vacuum suitability must be qualified for the actual pressure, cleaning, bake-out, particle and outgassing requirements.

Medical & Dental Device Development

TiN may be considered as one element of a medical or dental component design, but TiN alone does not make a magnet medical-grade, implantable, biocompatible or regulation-compliant. Customer-defined biocompatibility, sterilization and regulatory validation remain mandatory.

Custom Micro-Magnet Assemblies

Disc, block and ring geometries can be manufactured at sub-millimetre scale, but TiN coverage, edge condition and measurement capability must be re-evaluated as feature size decreases.

Bare NdFeB magnets compared with titanium nitride coated neodymium magnets

TiN vs Nickel, Epoxy and Parylene Magnet Coatings

CoatingBest Starting ReasonCritical Review Point
TiNHard, thin functional surface for wear-sensitive, precision or specially qualified environments.PVD thermal history, adhesion, line-of-sight coverage and coated dimensions.
Ni-Cu-NiGeneral industrial metallic protection and a practical default for many NdFeB designs.Mechanical damage, edge exposure and the actual corrosion environment.
EpoxyPolymer barrier when moisture protection is the main design requirement.Abrasion, sharp edges and local damage can compromise the barrier.
ParyleneThin conformal polymer coating for sensitive and dimension-conscious assemblies.Thickness, adhesion and application-specific environmental validation.

OSENC does not force TiN when it adds no value. If a simpler coating meets the real wear, corrosion, fit and cost requirement, the simpler route is usually the better procurement decision.

TiN nickel epoxy and Parylene neodymium magnet coating comparison

Temperature and Magnetic Performance Control

TiN does not increase the intrinsic magnetic strength or temperature rating of the NdFeB core. The finished result still depends on grade, geometry, intrinsic coercivity, working point, air gap, surrounding steel, magnetization and the coating thermal cycle.

OSENC prefers to complete the TiN process before final magnetization where the product route allows it. For projects that require TiN processing on already magnetized parts, a low substrate-temperature route is preferred. Published NdFeB work found that 100°C deposition gave a useful balance of corrosion protection and lower magnetic-property loss compared with much higher substrate temperatures.

Engineering control target: for already magnetized parts, use ≤100°C as the initial deposition-temperature target and compare pre/post coating Flux or Gauss. A ≤3% change can be proposed as a qualification target, but it is not a universal OSENC production guarantee until validated for the actual grade and geometry.
Define normal and maximum short-term operating temperature.
Lock magnetization direction on the approved drawing.
Use Gauss/flux, total flux, BH curve or pull force as separate tests when required.
Do not substitute Gauss for pull force or pull force for intrinsic magnetic properties.

TiN Coating Failure Modes and OSENC Control Points

Failure ModeWhy It MattersControl Direction
Pinholes / exposed substrateLocal defects can defeat corrosion protection even when most of the surface looks good.Define critical faces, visual limits and thickness/coverage inspection.
Edge defects or chippingNdFeB is brittle and edges are vulnerable during machining, coating, handling and assembly.Control chamfer/edge condition, packaging and coated-finish inspection.
Poor adhesion / peelingA hard coating is useless if it separates from the substrate or interlayer.Use qualified pretreatment and Ti adhesion architecture; add scratch testing when adhesion is critical.
Shadowed PVD areasDeep holes, slots and recesses may not receive the same line-of-sight deposition as open faces.Review geometry, masking and functional surface requirements before quoting.
Dimension interferenceMicrometre-scale coating build can still change fit in precision bores, slots or magnetic gaps.Dimension the finished coated part and identify inspection locations.
Thermal magnetic lossUnsuitable deposition temperature can reduce magnetic performance even when the coating looks acceptable.Use low-temperature processing and pre/post magnetic verification when required.

Quality Control for TiN Coated Neodymium Magnets

A gold surface is not an inspection result. OSENC builds the quality plan around measurable finished-part requirements and separates routine production checks from development or first-article qualification.

ItemRecommended MethodAcceptance Rule
TiN thicknessProduction: XRF calibrated to the TiN/substrate system. FAI or validation: cross-section SEM or optical profilometry.Report measurement locations plus Min / Average / Max against the drawing.
AdhesionProgressive-load scratch test, recording Lc1/Lc2 when adhesion is functionally critical.Suggested start Lc2 ≥15 N may be proposed for development; final limit requires sample validation.
CorrosionASTM B117 salt fog when salt-spray performance is relevant.24 / 48 / 96 h checkpoints can be defined. No universal salt-spray-hour claim applies without a project requirement.
WearProject-specific sliding test. One development protocol can use 6 mm Al₂O₃ ball / 5 N / 10,000 cycles / dry room-temperature sliding.Qualification protocol Record friction, wear track and coating breakthrough; not a default production test.
MagneticsGaussmeter for flux density; Helmholtz coil for total flux; BH tracer/permeameter for material curve; pull force on a separate force setup.Method, fixture, gap, orientation and pass/fail limit must be defined.
AppearanceVisual inspection under agreed lighting/magnification.No exposed substrate, peeling, blistering or through-coating scratches on controlled faces. Numerical pinhole, edge-chip or ΔE limits are drawing options, not universal standards.
About suggested limits: values such as Lc2 ≥15 N, 96 h salt fog, ≤3% magnetic change, pinhole size or ΔE are useful engineering starting points only. They become order requirements only when validated and written into the approved drawing, FAI plan or PO.
OSENC precision dimensional and magnetic inspection tools for custom neodymium magnets
Quality inspection setup for titanium nitride coated neodymium magnets

From Drawing Review to First Article

1

Review the Finished Part

Confirm grade, finished dimensions, magnetization, coating faces, masked areas, temperature, assembly fit and the reason TiN is specified.

2

Lock the TiN Route

Confirm PVD route, Ti/TiN structure, target thickness, coverage risks and whether special adhesion, wear or corrosion qualification is needed.

3

Build the FAI Plan

A useful FAI can include Drawing No./Revision, Lot No., five-piece dimensional results, TiN Min/Avg/Max, magnetic result, appearance and PASS/FAIL.

4

Release Repeat Production

The approved drawing, sample condition, inspection method, lot identification and packaging become the repeat-order reference.

Traceability direction: production labels can include Part No., Drawing Rev., NdFeB Grade, Coating, Magnetization, Lot No., Quantity, Inspection Status and Date. Packaging should prevent uncontrolled attraction, corner impact and TiN surface scratching.
Protective packaging reference for custom neodymium magnet shipment

Why Source Custom TiN Coated Magnets from OSENC?

Coating and Magnetics Are One SpecificationWe review the NdFeB grade, thermal sequence, magnetization and TiN route together instead of treating coating as a cosmetic last step.
Finished Dimensions Are ExplicitCritical tolerances are defined in the coated state, reducing the risk of discovering fit problems after a nominally “good” coating lot arrives.
Testing Is Method-SpecificGauss, total flux, BH curve, pull force, XRF, scratch and salt fog are kept separate so one test is not used to imply another property.
Qualification Limits Stay HonestSuggested targets are identified as targets until a sample, FAI or customer specification turns them into binding acceptance criteria.
Special Applications Get Boundary ControlVacuum, medical and dental projects are not declared “qualified” by coating name alone; the actual regulatory and environmental requirements must be validated.
TiN Is Not ForcedIf nickel, epoxy, Parylene or another route solves the real failure mode more simply, OSENC can recommend that route instead.

Request a Quote for Custom TiN Coated Neodymium Magnets

Send the finished-part requirement, not only “NdFeB + TiN.” A complete RFQ lets OSENC review feasibility before the coating, magnetic and dimensional requirements start contradicting one another.

2D drawing and 3D model if available
Finished dimensions and critical tolerances
NdFeB grade or magnetic performance target
Magnetization direction and pole arrangement
TiN functional reason and target thickness
Normal / maximum operating temperature
Wear, corrosion, vacuum or chemical exposure
Required inspection, FAI and test records
Prototype quantity and production volume
Assembly gap, mating surface and packaging constraints
Custom TiN coated neodymium magnet RFQ with drawing and inspection tools

TiN Coated Neodymium Magnet FAQs

How is TiN applied to neodymium magnets?

OSENC uses a low-temperature PVD project route, with DC/RF magnetron sputtering preferred and Ti/TiN structures available. The exact process depends on geometry, thermal sensitivity, coating thickness and the required surface function.

What TiN coating thickness can be specified?

OSENC currently uses 1–5 μm as the TiN design window, 2–4 μm as the typical starting range and 3 μm as a practical nominal starting point. The released thickness and tolerance must still be approved for the actual geometry and service condition.

Does TiN coating change magnet dimensions?

Yes. Even a micrometre-scale film adds coating build. Critical dimensions should therefore be defined and inspected in the finished coated state, especially for bores, slots, precision fits and magnetic gaps.

Does TiN make an NdFeB magnet stronger or more temperature-resistant?

No. TiN changes surface behavior; it does not increase the intrinsic magnetic properties or automatically raise the operating-temperature capability of the NdFeB grade.

Can TiN-coated neodymium magnets be used in vacuum systems?

They can be evaluated for vacuum projects, but coating name alone is not a vacuum qualification. The actual pressure, outgassing, cleaning, bake-out, particle and assembly requirements must be reviewed.

Can TiN-coated magnets be used in medical or dental devices?

They can be evaluated as components in a medical or dental development project, but TiN alone does not make the finished magnet medical-grade, implantable, biocompatible or compliant. Regulatory, sterilization and biocompatibility requirements must be defined and validated by the customer project.

How should TiN thickness be inspected?

For production, XRF can be used when calibrated to the actual TiN/substrate system. For first-article or validation work, cross-section SEM or optical profilometry can provide stronger thickness verification. The report should state the measurement points and Min/Avg/Max.

How should TiN coating adhesion be specified?

If adhesion is critical, use a defined method such as a progressive-load scratch test and agree the Lc1/Lc2 acceptance before production. A suggested engineering target is not the same as a universal product guarantee.

Is “titanium nitrate coating for magnets” the same material?

No. The hard ceramic coating discussed on this page is titanium nitride (TiN). “Titanium nitrate” is commonly a terminology error in magnet coating searches.

Source Titanium Nitride Coated Neodymium Magnets from OSENC

Send your drawing, finished tolerances, grade or magnetic target, pole direction, TiN thickness requirement, operating temperature, service environment, inspection needs and quantity. OSENC will review the complete magnetic component and return a quotation against a controlled finished-part specification.
